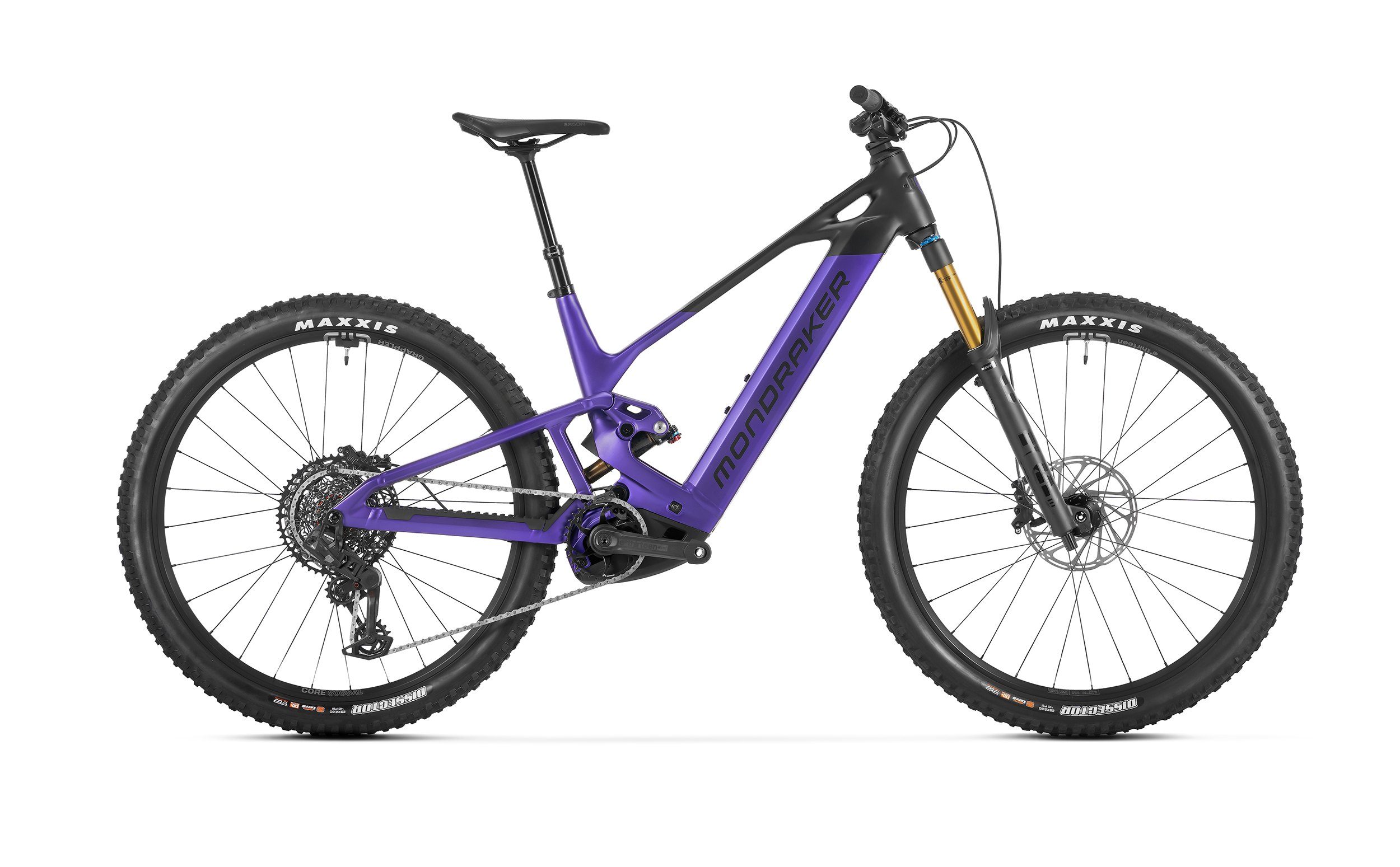

SCREE RR
Free shipping, assembly, and tubeless setup.
Add your weight at checkout and we'll dial in your suspension before it ships.
Questions about this bike?
Talk with a bike specialist about sizing, pricing, and custom builds.
Range: SCREE
Discipline: TRAIL, e-MTB TRAIL
Frame
SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm Travel, Forward Geometry, Internal Removable Battery, Boost 12x148mm Rear Axle, UDH, Tapered Head Tube, One-Piece Monoblock Upper Link, HHG Internal Cable Routing, MAX Capacity Sealed Bearings, Oversized 15mm Axles, Exclusive Plastic Motor Covers
Sizes
S: 380mm
M: 410mm
ML: 435mm
L: 460mm
XL: 490mm
Rear Shock
Fox Float Factory Kashima EVOL, 165x45mm, 2-Position Compression (Open/Firm), Rebound, Air Preload, Trunnion Top Mount, 30x8mm Bottom Bushings
Shock Settings
CM Compression, SCLRM5 Rebound, CMM, 0.6 Volume Spacer
Fork
Fox 36 Float GRIP X2 Factory Kashima 29, 150mm, Tapered Steerer Tube, Boost 15x110mm Kabolt Axle, 44mm Offset
Headset
Acros Custom ZS56/ZS56, 1-1/8"–1.5" Head Tube, Internal Cable Routing, Sealing Plugs Without Blocklock
Stem
Onoff S6 30mm, 0°, 6061 Forged Alloy + CNC, 31.8mm Clamp
Handlebar
Onoff S6 1.0 7050 Alloy, 800mm Width, 8° Backsweep, 5° Upsweep, 31.8mm Clamp
S–ML: 25mm Rise
L–XL: 38mm Rise
Grips
Onoff Desert Pro, CNC Lock-On, 135mm
L–XL: Thicker Size
Seatpost
X-Fusion Manic, 31.6mm, 1x Remote Lever
S: 361 x 125mm
M: 425 x 150mm
ML: 469 x 170mm
L: 521 x 190mm
XL: 531 x 200mm
Saddle
Ergon SMC10 Gel
Front Brake
SRAM DB8, 4-Piston Caliper, CenterLine 200mm Rotor, Steel-Backed Organic Pads
Rear Brake
SRAM DB8, 4-Piston Caliper, CenterLine 200mm Rotor, Steel-Backed Organic Pads
Brake Levers
SRAM DB8 Stealth, Tool-Free Reach Adjust, Lever Pivot Bushings
Wheelset
e*thirteen Grappler Core
IW30 Hookless
6066 Welded Aluminum
30mm Internal Width
Tubeless Ready
28 Spokes
Spokes
e*thirteen Custom Hive Triple-Butted Black Steel, Alloy Nipples, Nipple Washers
Front Hub
e*thirteen Boost 15x110mm, Triple-Sealed, Fully Machined Aluminum, IS 6-Bolt
Rear Hub
e*thirteen Superboost 12x148mm, Triple-Sealed, Fully Machined Aluminum, 6° Engagement, IS 6-Bolt, HG Freehub
Front Tire
Maxxis Dissector 29 x 2.6, 3C MaxxTerra Compound, EXO+ Protection, Tubeless Ready
Rear Tire
Maxxis Dissector 29 x 2.6, 3C MaxxTerra Compound, EXO+ Protection, Tubeless Ready
Crankset
ethirteen Helix Core ESpec Plus, 160mm
Chainring
SRAM Eagle 34T T-Type, Direct Mount, Steel, CL55
Chain
SRAM GX Eagle T-Type, 12-Speed, PowerLock
Rear Derailleur
SRAM S1000 Eagle AXS T-Type, 12-Speed
Shifter
SRAM Eagle AXS Pod MMX, 12-Speed
Cassette
SRAM XS-1270 T-Type, 10–52T, 12-Speed
Display
Bosch Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX Smart System (25 km/h) (BDU384Y)
Battery
Bosch PowerTube 800Wh
Weight
56.0 lbs
Additional Info
Bikes ship free in the continental US, arrive fully assembled, come set up tubeless, and include complimentary suspension setup based on rider weight.
