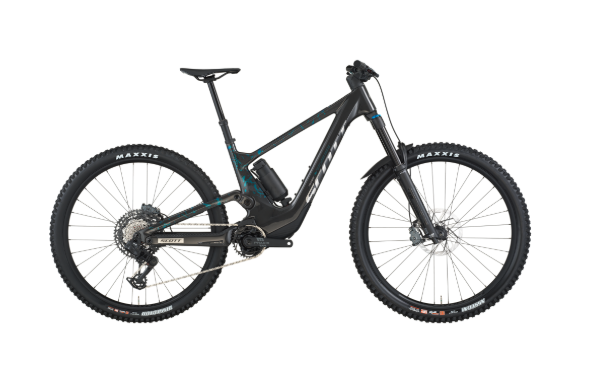

Scott Voltage 910

Bike Specs:

Frame
Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, adjustable head angle, Syncros Cable Integration System, TQ HPR60 UDH Interface, 12x148mm with 55mm chainline

Travel
Front: 160mm / Rear: 155mm

Fork
FOX 36 Rhythm Air Grip, Sweep Adjust, 15x110mm QR axle, tapered steerer, 44mm offset, rebound adjust, lockout, 160mm travel

Rear Shock
FOX FLOAT X NUDE EVOL Piggy Back Trunnion, SCOTT custom tuning with travel & geo adjustment, 3 modes (Climb-Ramp Control-Descend), compression & rebound adjustable, 155-100-Climb travel, T185x55mm

Remote System
TracLoc Technology, rear suspension & dropper remote, 3 rear suspension modes

Drive Unit
TQ HPR60 Mid Motor Drive, 60Nm max torque, EU 25km/h, US 20mph

Battery
TQ Internal 360Wh + TQ Range Extender 160Wh

Display
TQ HPR, Bluetooth, ANT+, dedicated smartphone app

Charger
TQ 100-240V-4A

Rear Derailleur
SRAM S1000 Eagle AXS Transmission, wireless electronic shifting, 12-speed

Shifter
SRAM AXS Rocker Pod Controller

Crankset
Praxis Alloy

Chainguide
ethirteen espec Slider

Chainring
Praxis alloy spider, SRAM Eagle Transmission 34T chainring

Chain
SRAM CN GX Eagle Transmission

Cassette
SRAM Eagle XS 1270 Transmission, 10-52T

Brakes
SRAM Maven Bronze Stealth 4-Piston Disc

Rotors (F/R)
SRAM HS2 Rotors, 200mm Front / 200mm Rear

Handlebar
Syncros Hixon 1.5 Alloy 7050, 780mm, 8° backsweep

S–M: 15mm rise

L–XL: 25mm rise

Stem
Syncros AM 1.5, Syncros Cable Integration System, 4° rise, 7050 Alloy, 31.8mm, 1 1/8"

Grips
Syncros Endurance Lock-On

Seatpost
Syncros Duncan Dropper Post 1.5s, 31.6mm, travel adjust

S: 140mm

M: 180mm

L: 180mm

XL: 210mm

Saddle
Syncros Tofino 1.5 Regular, titanium rails

Headset
Syncros-Acros Angle Adjust & Cable Routing HS System, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

Front Hub
Formula CL-811, 15x110mm

Rear Hub
Formula CL-148S, 12x148mm

Spokes
Stainless Black 15G, 1.8mm

Rims
Syncros X-30S, 32H, 30mm, sleeve joint, tubeless ready

Front Tire
Maxxis Assegai, 2.5", 60TPI foldable, Tubeless Ready, EXO+ 3C Maxx Terra

Rear Tire
Maxxis Dissector, 2.5", 60TPI foldable, Tubeless Ready, EXO+ 3C Maxx Terra

Take your trail rides and shuttle laps to an 11 with the boosted power and range of the long-travel Voltage 910 e-MTB—or better yet, be your own shuttle. Voltage 910’s new secret weapon is TQ’s updated HPR60 motor unit, which pumps out 60Nm of heart-pumped torque for a 20% performance boost over the previous Voltage. No switchback is too tight, and no obstacle is too challenging when you open up this trail monster on the ride.

But it’s not only power that’s improved. Range is also upgraded from the previous Voltage to give you extra “legs” when you want to reach that next peak or send a final lap before sunset. Each Voltage 910 now comes with a Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.

Our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.

This Voltage also comes with SRAM’s Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.
