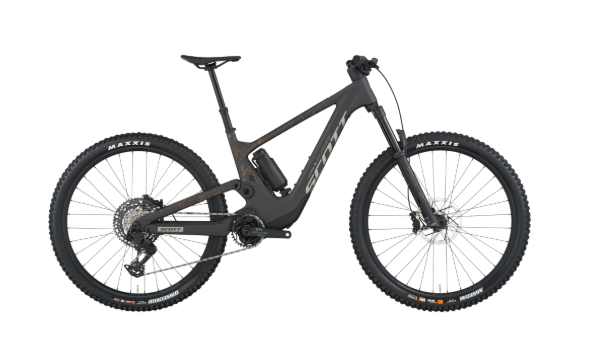

Scott Voltage 920

Bike Specs:

Frame
Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, adjustable head angle, Syncros Cable Integration System, TQ HPR60 UDH Interface, 12x148mm with 55mm chainline

Travel
Front: 150mm / Rear: 155mm

Fork
Marzocchi Z2 Air Rail, Sweep Adjust, 15x110mm QR axle, tapered steerer, 44mm offset, rebound adjust, lockout, 150mm travel

Rear Shock
X-Fusion NUDE 5 RLX Trunnion, SCOTT custom tuning with travel & geo adjustment, 3 modes (Lockout-Traction Control-Descend), rebound adjustable, 155-100-Lockout travel, T185x55mm

Remote System
SCOTT TracLoc 2 Technology, suspension & dropper remote, 3 suspension modes

Drive Unit
TQ HPR60 Mid Motor Drive, 60Nm max torque, EU 25km/h, US 20mph

Battery
TQ Internal 360Wh + TQ Range Extender 160Wh

Display
TQ HPR, Bluetooth, ANT+, dedicated smartphone app

Charger
TQ 100-240V-4A

Rear Derailleur
SRAM Eagle 70 Transmission, 12-speed

Shifter
SRAM Eagle 70 Shifter

Crankset
Praxis Alloy

Chainguide
ethirteen espec Slider

Chainring
Praxis alloy spider, SRAM Eagle Transmission 34T chainring

Chain
SRAM CN Eagle 70 Transmission

Cassette
SRAM Eagle XS 1270 Transmission, 10-52T

Brakes
SRAM DB4 Stealth 4-Piston Disc

Rotors (F/R)
SRAM HS2 Rotors, 200mm Front / 200mm Rear

Handlebar
Syncros Hixon 2.0 Alloy 6061, 780mm, 8° backsweep

S–M: 15mm rise

L–XL: 25mm rise

Stem
Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 Alloy, 31.8mm, 1 1/8"

Grips
Syncros Endurance Lock-On

Seatpost
Syncros Duncan Dropper Post 1.5s, 31.6mm, travel adjust

S: 140mm

M: 180mm

L: 180mm

XL: 210mm

Saddle
Syncros Tofino 2.0 Regular

Headset
Syncros-Acros Angle Adjust & Cable Routing HS System, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

Front Hub
Formula CL-811, 15x110mm

Rear Hub
Formula CL-148S, 12x148mm

Spokes
Stainless Black 15G, 1.8mm

Rims
Syncros X-30S, 32H, 30mm, sleeve joint, tubeless ready

Front Tire
Maxxis Assegai, 2.5", 60TPI foldable, Tubeless Ready, EXO+ 3C Maxx Terra

Rear Tire
Maxxis Dissector, 2.5", 60TPI foldable, Tubeless Ready, EXO+ 3C Maxx Terra

Voltage 920 is our long-travel e-MTB with a carbon front and alloy rear triangle for riders who want all the heart-pumping excitement of a top-tier trail bike without the top-tier price tag. With its lightweight design, 160mm front and 155mm rear travel suspension, and an updated, high-performance motor unit, Voltage 920 is the ideal big riding, epic sending, e-rig that handles its own shuttle laps.

Power is boosted to 60Nm compared to the 50Nm on the previous Voltage thanks to TQ’s new HPR60 motor, which leaves you feeling like there’s no switchback too tight and no obstacle is too challenging. Range is also upgraded also with an included Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It’s the assist you need to enjoy bigger days on the trails, and it’s small enough to pack if you want to have it along on any given ride.

Our NUDE Suspension technology with the X-Fusion NUDE shock that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up.

This Voltage also comes with SRAM’s Transmission groupset and SRAM DB4 Stealth 4-Piston Disc brakes to give you the range and the stopping power to make every ride one to remember.
