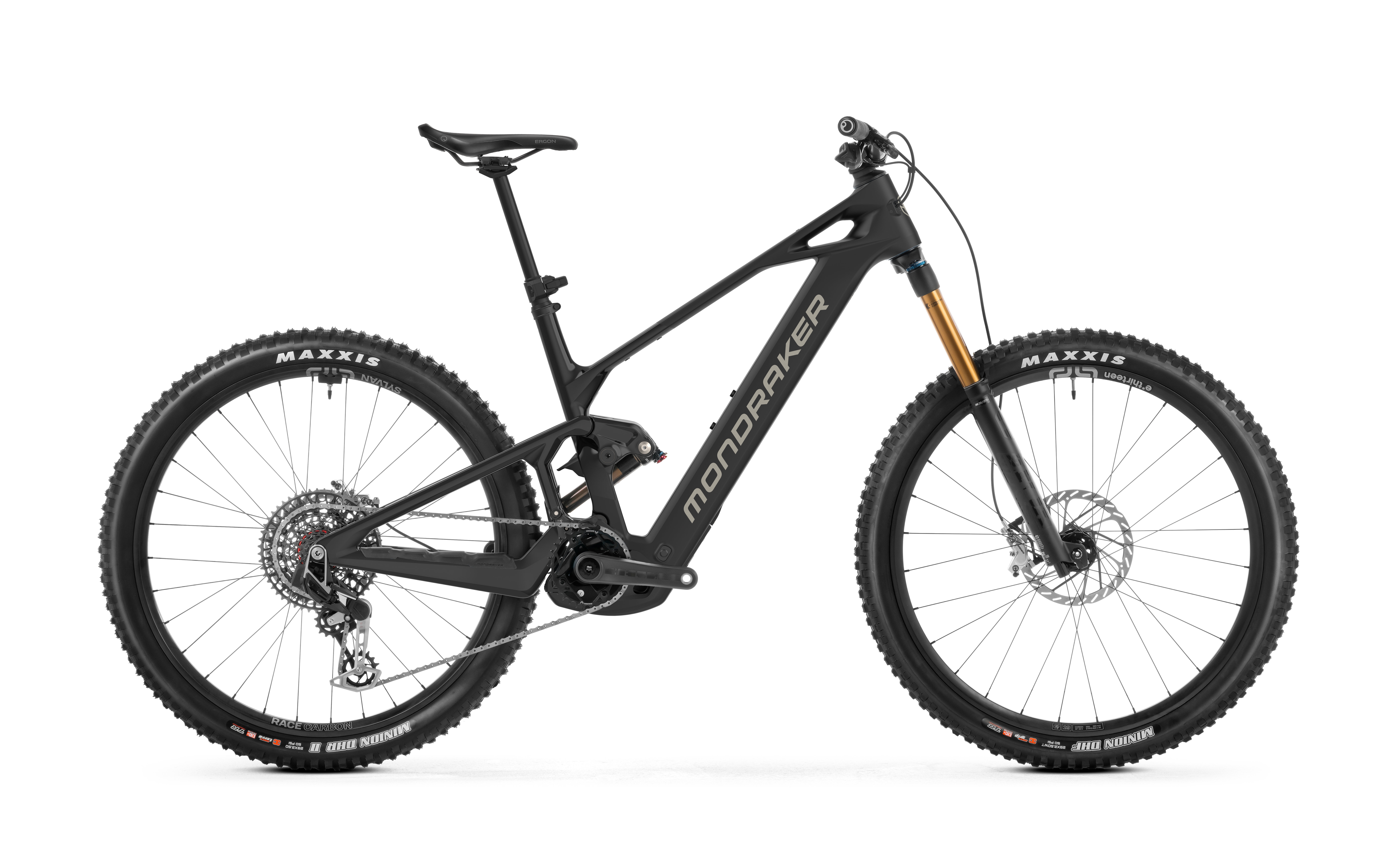

Crafty Carbon RR SL
Free shipping, assembly, and tubeless setup.
Add your weight at checkout and we'll dial in your suspension before it ships.
Questions about this bike?
Talk with a bike specialist about sizing, pricing, and custom builds.
Range: CRAFTY
Discipline: ENDURO
Frame
Crafty Stealth Air Full Carbon, Updated Zero Suspension System, 150mm Travel, Forward Geometry, Internal Removable Battery, Boost 12x148mm Rear Axle, Tapered Head Tube, One-Piece Monoblock Upper Link, HHG Internal Cable Routing, MAX Capacity Sealed Bearings, Oversized 15mm Axles, Exclusive Plastic Motor Covers
Sizes
S: 380mm
M: 410mm
ML: 435mm
L: 460mm
XL: 490mm
Rear Shock
Fox Float Factory Kashima EVOL, 185x55mm, 2-Position Compression (Open/Firm), Rebound, Air Preload, Trunnion Top Mount, 30x8mm Bottom Bushings
Shock Settings
CM Compression, SCLRM5.2 Rebound, CML, 0.2 Volume Spacer
Fork
Fox 36 Float GRIP X2 Factory Kashima 29, 160mm, Tapered Steerer Tube, Boost 15x110mm Kabolt Axle, 44mm Offset
Headset
Acros Custom ZS56/ZS56, 1-1/8"–1.5" Head Tube, Internal Cable Routing, Sealing Plugs Without Blocklock
Stem
Onoff S9 30mm, 0°, Full CNC, 31.8mm Clamp
Handlebar
Onoff S9 1.0 Carbon, 800mm Width, 8° Backsweep, 5° Upsweep, 31.8mm Clamp
S–ML: 25mm Rise
L–XL: 1.5" Rise
Grips
Onoff Desert Pro, CNC Lock-On, 135mm
L–XL: Thicker Size
Seatpost
RockShox Reverb Stealth AXS, 31.6mm
S: 390 x 125mm
M: 440 x 150mm
ML: 480 x 170mm
L: 480 x 170mm
XL: 480 x 170mm
Saddle
Fizik Vento Argo 00 Carbon, 150mm
Front Brake
SRAM Code Ultimate Stealth, Oversized 4-Piston Caliper, HS2 200mm Rotor, Steel-Backed Metal Sintered Pads
Rear Brake
SRAM Code Ultimate Stealth, Oversized 4-Piston Caliper, HS2 200mm Rotor, Steel-Backed Metal Sintered Pads
Brake Levers
SRAM Code Ultimate Stealth, SwingLink and Lever Pivot Bearings, Tool-Free Reach and Contact Point Adjust
Wheelset
e*thirteen Sylvan Race Carbon IW30
Hookless Carbon Rims
30mm Internal Width
Tubeless Ready
28 Spokes
Spokes
e*thirteen Custom Hive Triple-Butted Black Steel, Alloy Nipples, Nipple Washers
Front Hub
e*thirteen Boost 15x110mm, Triple-Sealed, Fully Machined Aluminum, IS 6-Bolt
Rear Hub
e*thirteen Boost 12x148mm, Triple-Sealed, Fully Machined Aluminum, 6° Engagement, IS 6-Bolt, XD Freehub
Front Tire
Maxxis Minion DHF 29 x 2.5, 3C MaxxGrip Compound, EXO+ Protection, Tubeless Ready
Rear Tire
Maxxis Minion DHR II 29 x 2.5, 3C MaxxTerra Compound, EXO+ Protection, Tubeless Ready
Crankset
ethirteen Helix Race Carbon ESpec Plus, 160mm
Chainring
SRAM T-Type 34T, Steel, Narrow-Wide, 104 BCD
Chain
SRAM XX Eagle T-Type, 12-Speed, PowerLock
Rear Derailleur
SRAM XX Eagle AXS T-Type, 12-Speed
Shifter
SRAM Eagle AXS Pod MMX, 12-Speed
Cassette
SRAM XS-1297 T-Type, 10–52T, 12-Speed
Display
Bosch Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX Smart System (20 mph) (BDU384Y)
Battery
Bosch PowerTube 600Wh
Weight
46.5 lbs
Additional Info
Bikes ship free in the continental US, arrive fully assembled, come set up tubeless, and include complimentary suspension setup based on rider weight.
