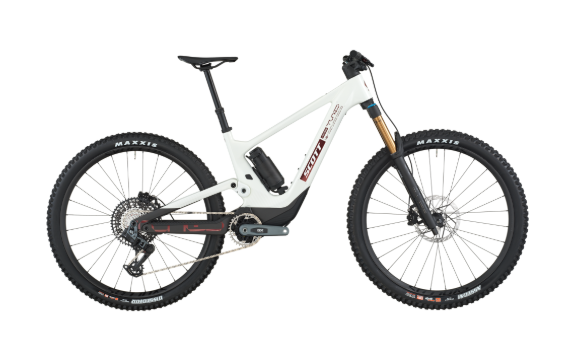

Scott Voltage 900 Tuned

Bike Specifications
Fork
FOX 36 Factory Air GripX2, HSC-LSC-HSR-LSR adjustable, 15x110mm QR axle, tapered steerer, 44mm offset, 160mm travel

Rear Shock
FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion, SCOTT custom tuning, 3 modes (Climb-Ramp Control-Descend), compression & rebound adjustable, 155-100-Climb travel, T185x55mm

Remote System
TracLoc Technology, rear suspension & dropper remote, 3 rear suspension modes

Drive Unit
TQ HPR60 Mid Motor Drive, 60Nm max torque, EU 25km/h, US 20mph

Battery
TQ Internal 360Wh + TQ Range Extender 160Wh

Display
TQ HPR Color, Bluetooth, ANT+, dedicated smartphone app

Charger
TQ 100-240V-4A

Frame
Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, adjustable head angle, Syncros Cable Integration System, TQ HPR60 UDH Interface, 12x148mm with 55mm chainline

Travel
Front: 160mm / Rear: 155mm

Wheelset
Syncros Revelstoke 1.0-30 CL, 30mm tubeless-ready carbon rims, DT Swiss Ratchet Hubs, XD Driver

Front Wheel Spacing
15x110mm

Rear Wheel Spacing
12x148mm

Front Tire
Maxxis Assegai, 2.5", EXO+ 3C Maxx Terra, Tubeless Ready

Rear Tire
Maxxis Dissector, 2.5", EXO+ 3C Maxx Terra, Tubeless Ready

Brakes
SRAM Maven Silver Stealth 4-Piston Disc

Rotors (F/R)
SRAM HS2 Rotors, 200mm Front / 200mm Rear

Crankset
SRAM GX Eagle Alloy

Chainring
SRAM XX Eagle Transmission 34T

Rear Derailleur
SRAM GX Eagle AXS Transmission, wireless electronic shifting, 12-speed

Shifter
SRAM AXS Rocker Pod Controller

Cassette
SRAM GX Eagle XS 1275 Transmission, 10-52T

Chain
SRAM CN GX Eagle Transmission

Chainguide
ethirteen espec Slider

Headset
Syncros-Acros Angle Adjust & Cable Routing HS System, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

Grips
Syncros Endurance Lock-On

Handlebar
Syncros Hixon iC Carbon, 780mm, 8° backsweep

Stem
Integrated with Syncros Hixon iC Carbon cockpit

Seatpost
Syncros Duncan Dropper Post 1.5s, 31.6mm, travel adjust

S: 140mm

M: 180mm

L: 180mm

XL: 210mm

Saddle
Syncros Tofino 1.5 Regular, titanium rails

Set up for trail riding perfection on the long-travel Voltage 900 Tuned e-MTB. With 160mm front and 155mm tunable rear travel combined with the boosted torque of TQ’s new HPR60 motor unit, you’ll be brappin’ and slappin’ as you push your rides to all-new heights.

Let’s talk about the new HPR60. Updated from the HPR50 found on the previous Voltage, HPR60 dishes out 60Nm of hair-raising torque for you to gobble up inclines like your post-ride burritos. It’s a 20% boost in performance that makes the Voltage 900 ride at the top of its class in the lightweight e-bike category.

Range has improved, too. Each Voltage comes with a Range Extender Battery to complement the 360Wh main battery to keep the lights on longer—so to speak—and make your rides damn near indefatigable. Not sure where your ride will go? Take it along with you for just-in-case moments. It’s the size of a small water bottle and stows away in your day pack.

Our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.

This Voltage also comes with SRAM’s GX Eagle AXS Transmission groupset and powerful Maven four-piston brakes to give you the range and the stopping power to make every ride one to remember.
