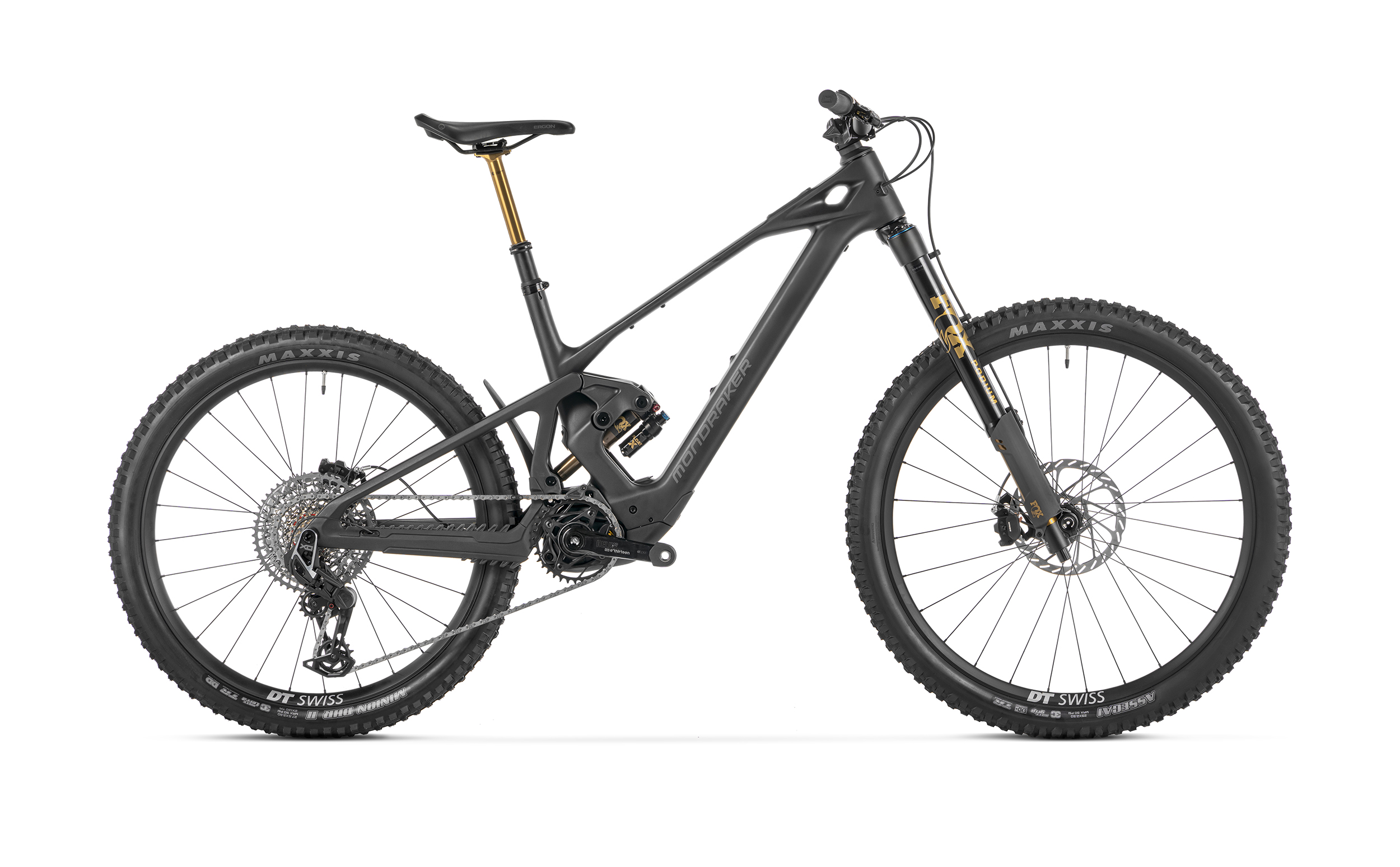

Zendit RR S

Frame
Zendit Stealth Air Full Carbon, Updated Zero Suspension System, 165mm Travel, Forward Geometry, Internal Battery, Boost 12x148mm Rear Axle, UDH, Tapered Head Tube, One-Piece Monoblock Upper Link, HHG Internal Cable Routing, MAX Capacity Sealed Bearings, Oversized 15mm Axles, Exclusive Plastic Motor Covers

Sizes

• S: 380mm

• M: 410mm

• ML: 435mm

• L: 460mm

• XL: 490mm

Rear Shock
Fox Float X Factory Kashima EVOL LV, 205x65mm, 2-Position Compression Lever (Open/Firm), Low-Speed Compression, Low-Speed Rebound, Air Preload, Trunnion Top Mount, 30x8mm Bottom Bushings

Shock Settings
CS30 Compression, 1.1 Bleed, RL50 Rebound, Rezi B40, LML, Standard MCU, 0 Volume Spacers

Fork
Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, Tapered Steerer Tube, Boost 20x110mm Thru Axle, 44mm Offset

Headset
Acros Custom ZS56/ZS56, 1-1/8"–1.5" Head Tube, Internal Cable Routing, Sealing Plugs, Without Blocklock

Stem
Onoff S9 30mm, 0°, Full CNC, 31.8mm Clamp

Handlebar
Onoff S9 1.0 Carbon, 800mm Width, 8° Backsweep, 5° Upsweep, 31.8mm Clamp

• S–ML: 25mm Rise

• L–XL: 38mm Rise

Grips
Onoff Desert Pro, CNC Lock-On, 135mm

• L–XL: Thicker Size

Seatpost
Fox Transfer Factory Kashima Internal, Adjustable Travel, 31.6mm

• S: 95–120mm

• M: 125–150mm

• ML: 155–180mm

• L: 185–210mm

• XL: 185–210mm

Saddle
Ergon SM10 E-Mountain Black

Front Brake
SRAM Maven Silver, 4-Piston Caliper, HS2 200mm Rotor, Steel-Backed Metal Sintered Pads

Rear Brake
SRAM Maven Silver, 4-Piston Caliper, HS2 200mm Rotor, Steel-Backed Metal Sintered Pads

Brake Levers
SRAM Maven Silver, SwingLink and Lever Pivot Bushings, Tool-Free Reach Adjust

Wheelset
DT Swiss Hybrid HX 1700 Spline

• 30mm Internal Width

• Welded Aluminum Rims

• Tubeless Ready

• 28 Spokes

Spokes
DT Swiss Straightpull Spokes, DT Hybrid III, Black

Front Hub
DT Swiss 350, Boost 20x110mm, IS 6-Bolt

Rear Hub
DT Swiss 350 Classic, 24T Ratchet System, Boost 12x148mm, IS 6-Bolt, XD Freehub

Front Tire
Maxxis Assegai 29 x 2.5WT, 3C MaxxGrip Compound, EXO+ Protection, Tubeless Ready

Rear Tire
Maxxis Minion DHR II 27.5 x 2.5WT, 3C MaxxTerra Compound, DD Protection, Tubeless Ready

Crankset
ethirteen Helix Race ESpec Alloy, 155mm

Chainring
SRAM Eagle 36T T-Type, 104 BCD, Steel, CL55

Chain
SRAM GX Eagle T-Type, 12-Speed Flattop, PowerLock

Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12-Speed

Shifter
SRAM Eagle AXS Pod Controller Rocker Paddle with Discrete Clamp, 12-Speed

Cassette
SRAM XS-1275 T-Type, 10–52T, 12-Speed

Display
Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Motor
Avinox M2S

Battery
Avinox 800Wh Battery

Additional Components
SRAM AXS Extension Cord / Avinox 4A Charger

Weight
22.9 kg (50.5 lbs)

Additional Info
Bikes ship free in the continental US, arrive fully assembled, come set up tubeless, and include complimentary suspension setup based on rider weight.
